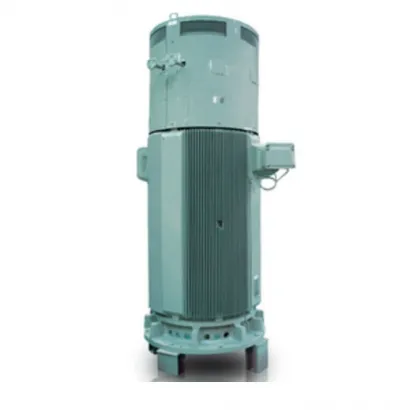

Tatung Motor - TS21FV TEFC Series: Vertical

Output : 150kW (200HP) ~ 2000kW (2500HP) Poles : 4P ~ 10P Frame size : N315LL ~ N560LL (IEC / METRIC) Voltage : 380V, 460V, 3000V, 3300V,4160V, 6000V, 6600V,10000V,11000V Frequency : 50Hz, 60Hz Enclosure : Totally Enclosed Fan Cooled (TEFC) Mounting : Vertical Flange Mounted Insulation : Class F Temperature rise : Class B at S.F. 1.0 / Class F at S.F. 1.15 (By Resistance Method) Environment : Ambient Temperature 40℃ Altitude : 1000 meters (3300 feet) or less Trust capability : Thrust load is not allowed for standard motors. For high thrust motors, maximum allowable down thrust is based on 5 years L-10 bearing life.
