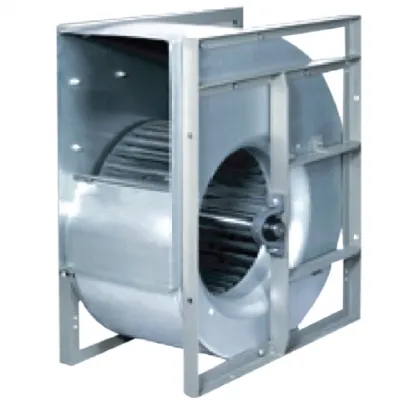

SFB Single Forward Belt Drive

SFB Single Forward Belt Drive PRODUCT: Fan HVAC Fan CONSTRUCTIONS: GENERAL FEATURES: Range with 15 sizes from 200mm. until 1000 mm.,provided with three phase 2,4,6 and 8 pole motors. Air-flow up tp 50000 m3/h. Maximum working temperature 85C in continuous. MANUFACTURING FEATURES: Fully made of galvanized steel sheet. All models fitted with single inlet backward curve impellers. Transmission shaft with anticorrosion treatment. The transmission shaft standing out in both fan sides to allow the assembly of the motor, pulleys and belts. Cubick assembly with lateral pannels to reinforce the fan. Fan with ball bearings greased for life assembled with rubber ring or fan with ball bearings greased for life assembled in a base support. APPLICATIONS: Special designed for duct assembly are suitable for: General ventilation Renovation of stuffy air environments in buildings and industry. Fresh air injection in any local types, building and industry installations. Ventilation in work shops. Clean a
