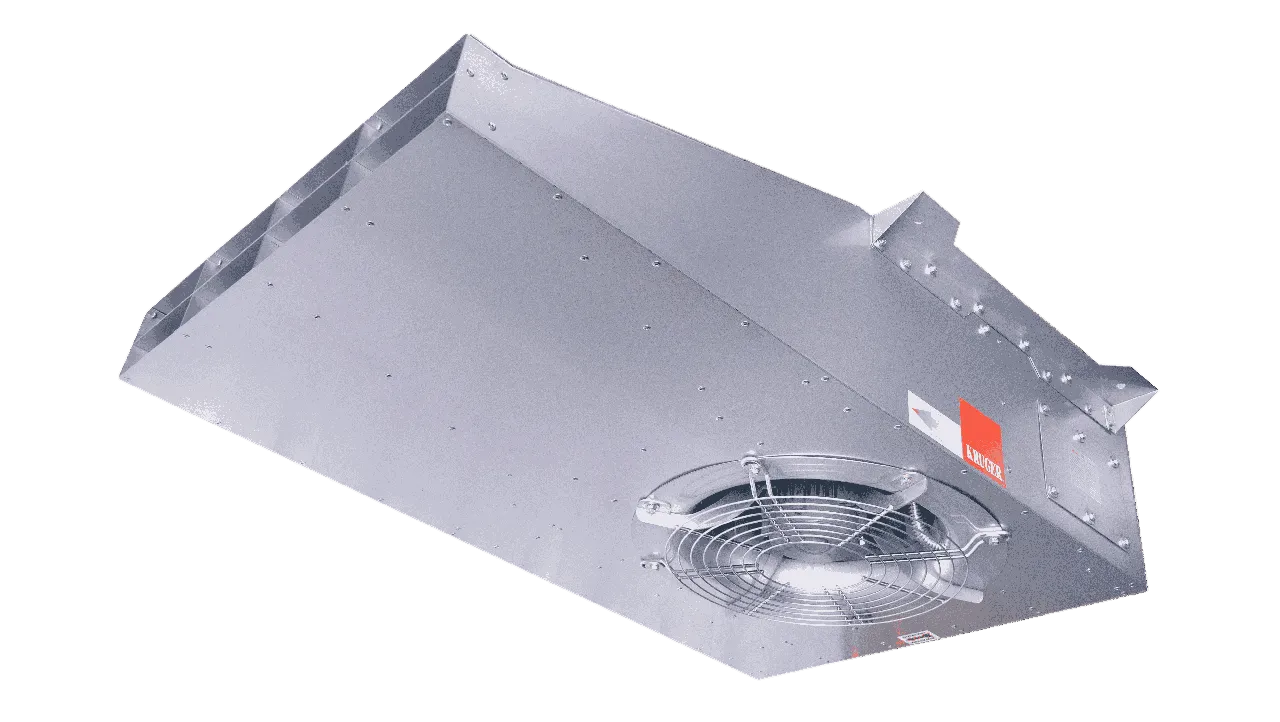

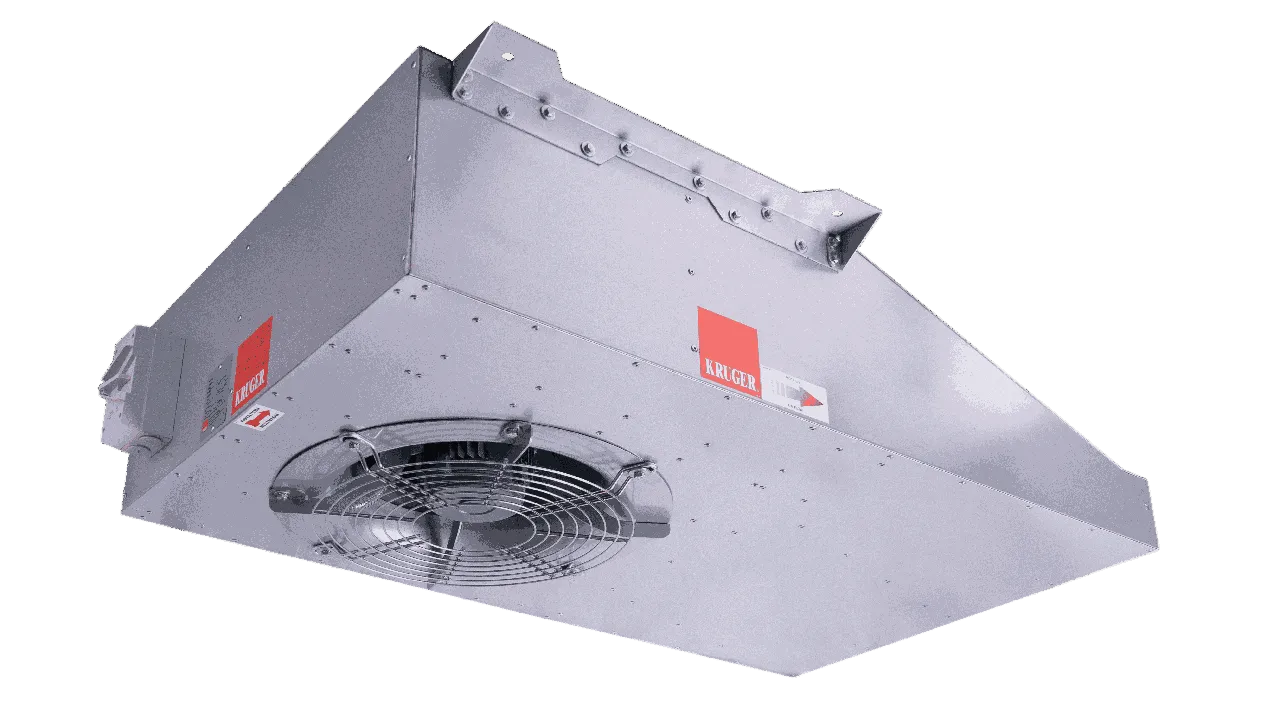

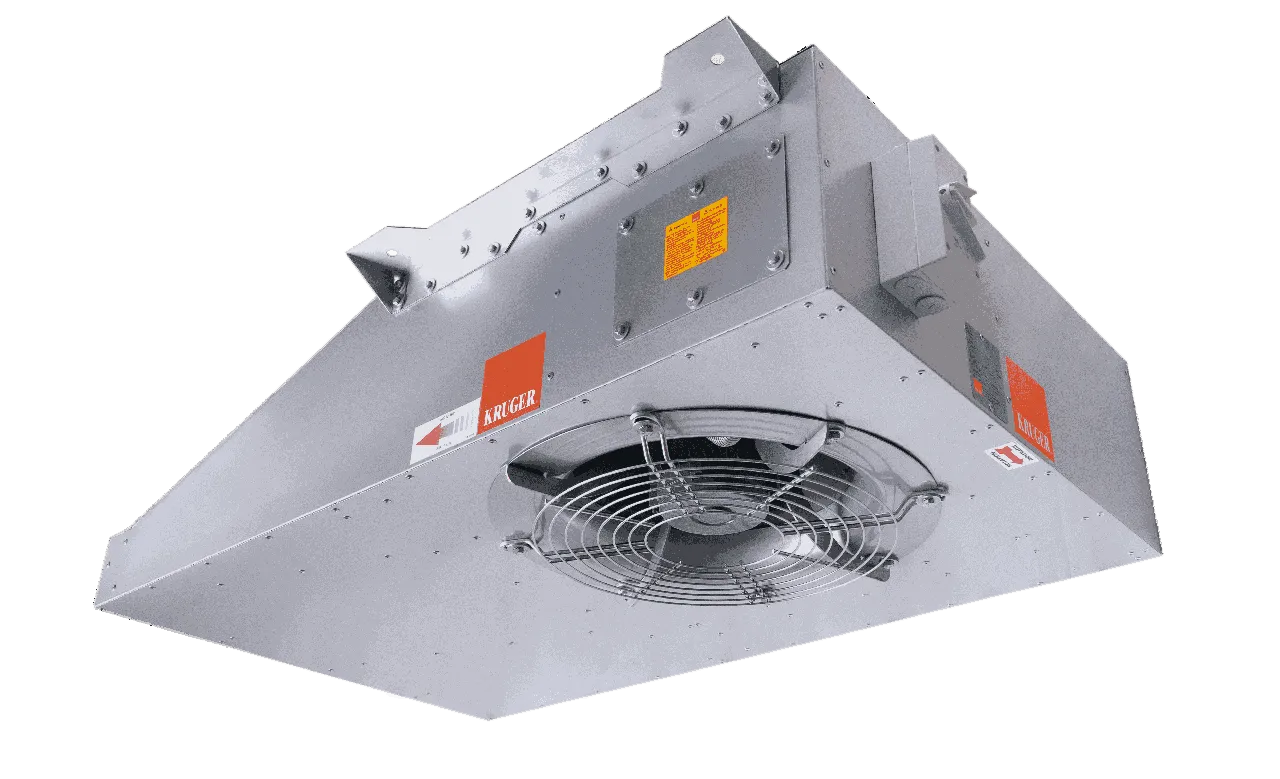

IJC II Series - Induced Jet Fan

Specifications Quick Facts • Size from 50 to 100 • Capacity up to 11,100 m3/h • Thrust force up to 97N • Outlet velocity up to 26.2 m/s • Suitable for ventilation and smokespill application Operating Temperature • General ventilation: -20°C to +55°C. • Smoke exhaust system: 200°C, 250°C, 300°C or 400°C - 2 hrs Motor • General Ventilation All motors are IP55, Class F insulation, Totally Enclosed Non-Ventilated (TENV). • Smoke Exhaust System All motors are IP55, Class H insulation, Totally Enclosed Non-Ventilated (TENV) High Temperature Rated Motor (200°C, 250°C, 300°C or 400°C - 2 hrs, TUV SUD PSB certified). 60 Hz motor is available upon request. Construction Fan • Galvanized sheet steel casing supplied with two mounting brackets. • Centrifugal backward curved wheel in mild steel with polyester paint. • Supplied with high carbon steel inlet guard.
