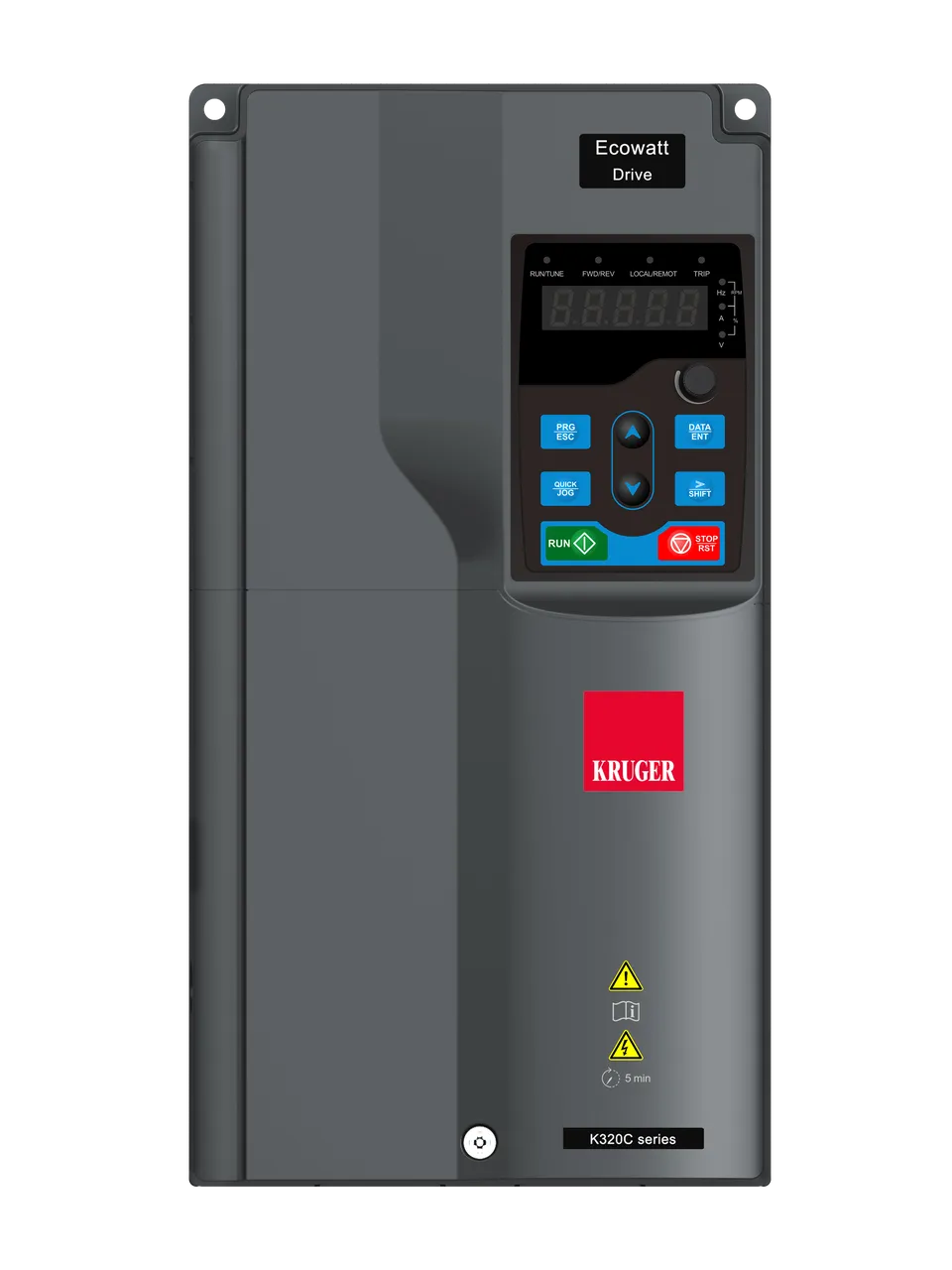

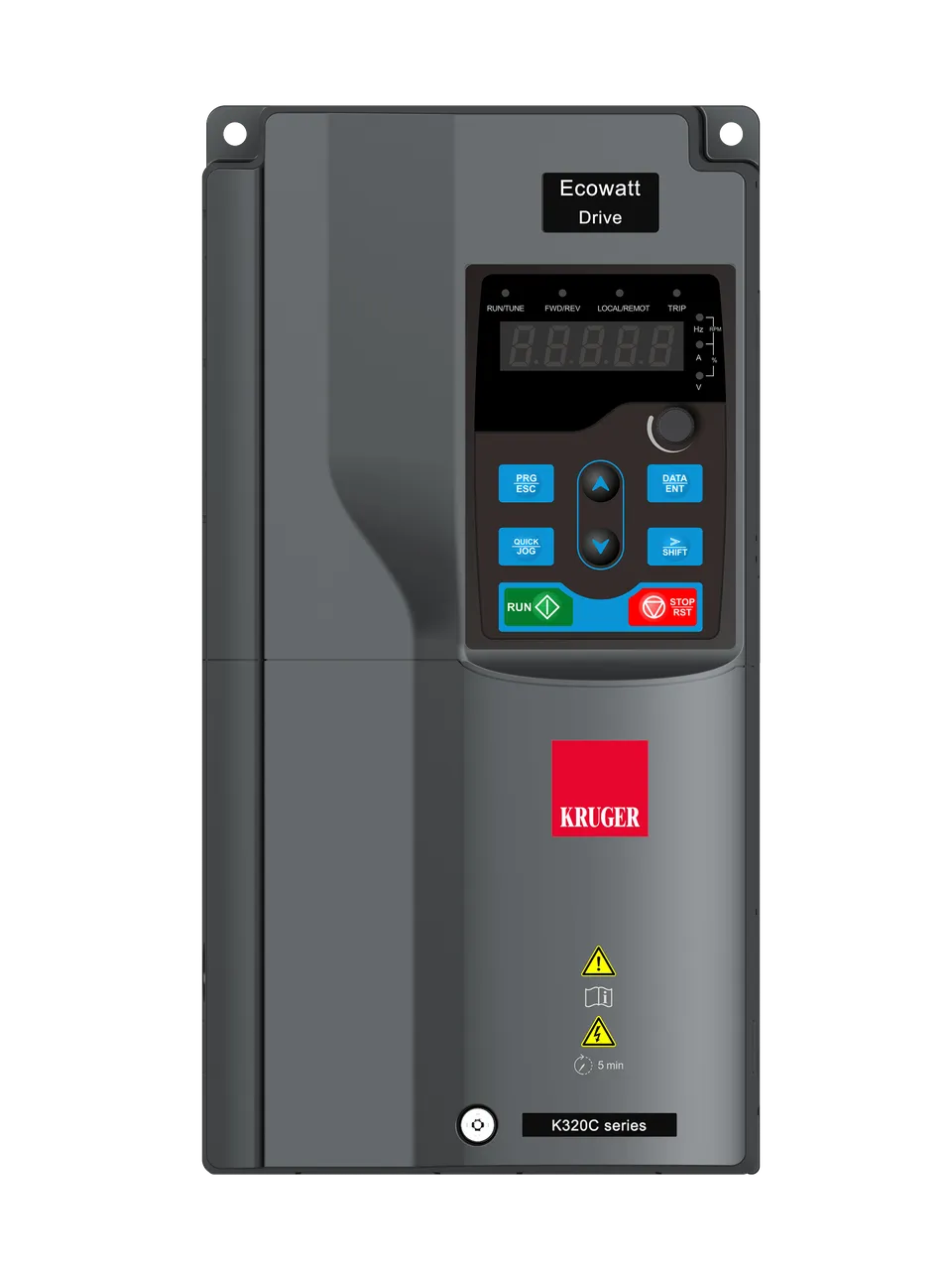

Ecowatt® Drives - K320C Series

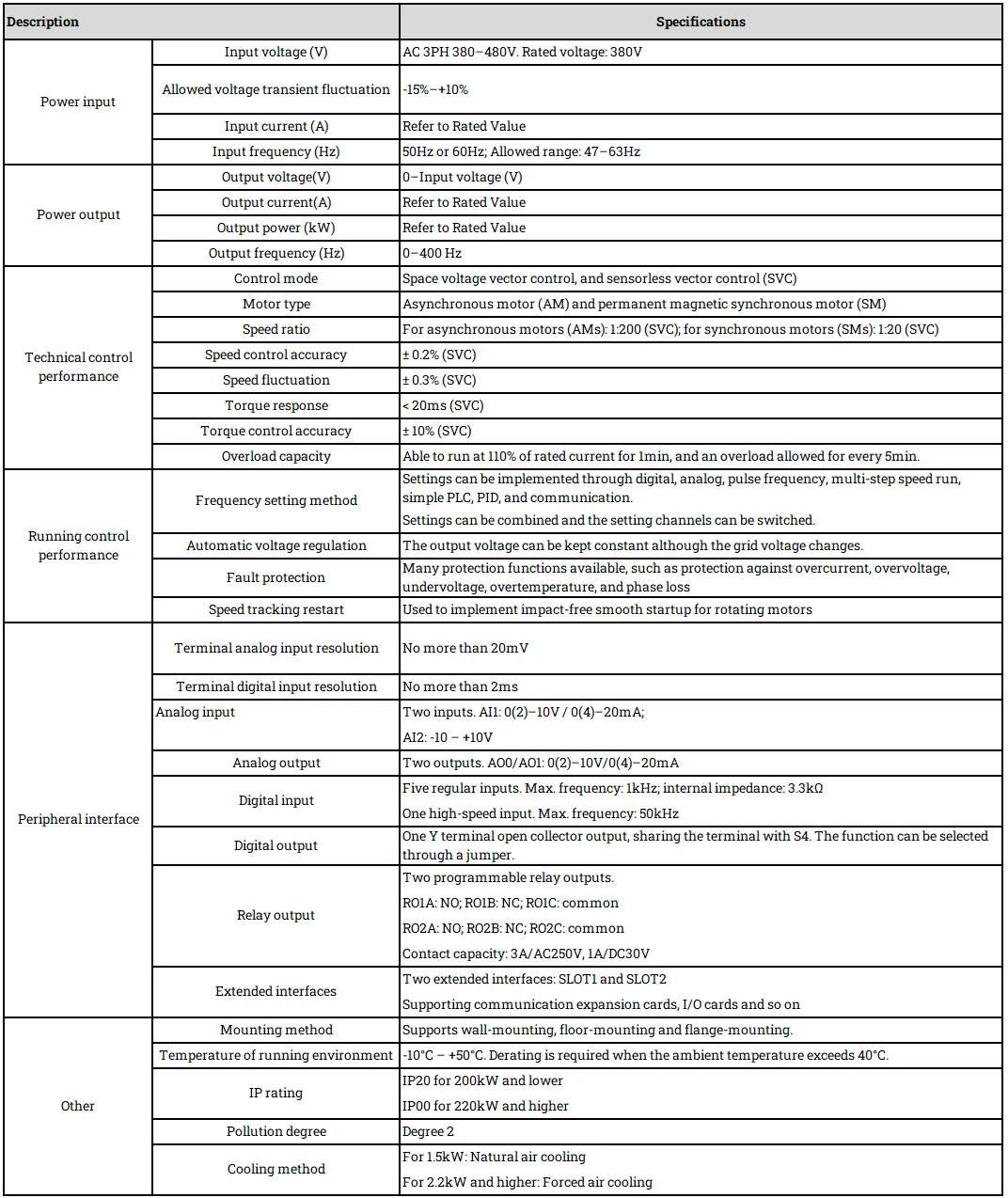

Features & Benefits Energy saving • This VFD adopts dedicated PID control mode for Demand Control Ventilation system to optimizes the voltage output of the VFD to the actual load of the FAN motor, thus minimizing its power consumption. Easy control • It supports a wide range of popular control signals, including 0-10V and 4-20mA, as well as Modbus communication, enabling the implementation of complex system solutions. High performance • It armed with advanced vector control technology and the latest digital processor dedicated for motor control, thus enhancing product reliability and adaptability to the environment. Reliable • Ecowatt Drive K320C uses high power density design. Some power ranges carry built-in DC reactor and Braking unit to save installation space. Through overall EMC design, it can satisfy the low noise and low electromagnetic interference requirements to cope with challenging grid, temperature, humidity and dust conditions, thus greatly improving product reliability. Product Overview • Input Power: 3PH 380V±15% 50/60Hz, • Output Voltage: 3PH 0-400V, 0-400Hz • Output Power Range: 1.5 - 500kW • Ingress Protection Rating: IP20 (Indoor application)
