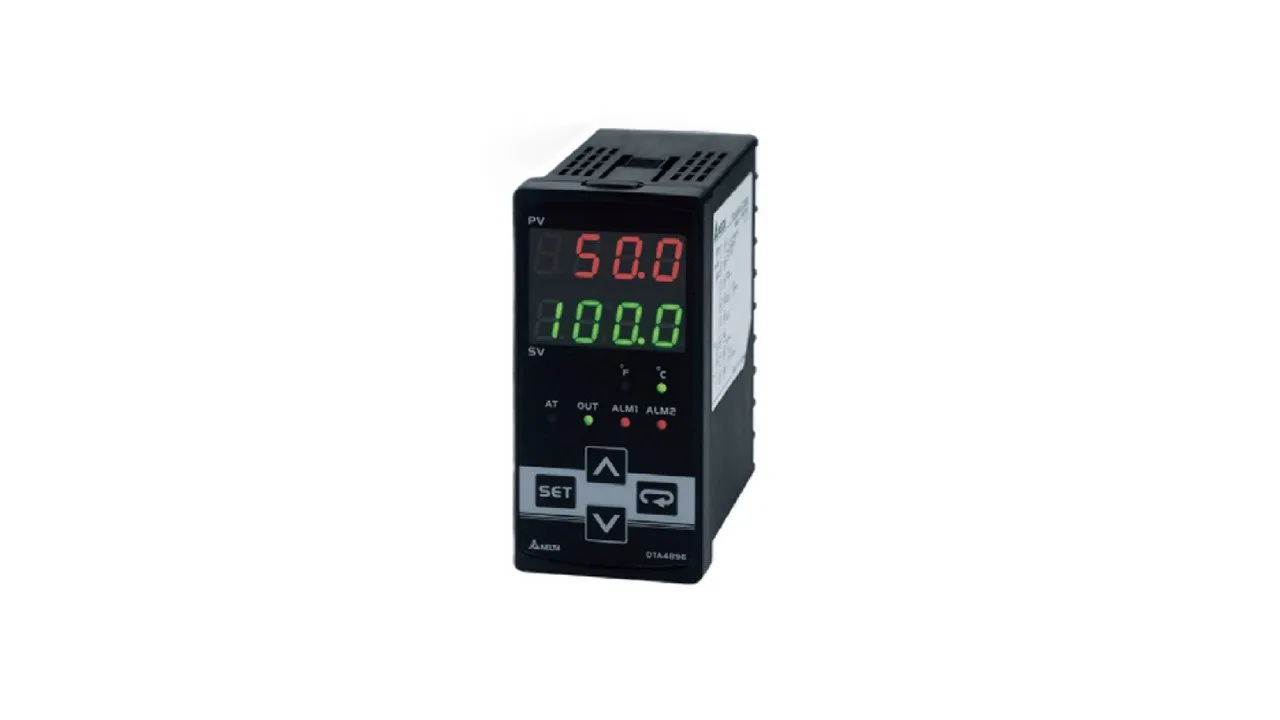

DTA Series

•    PID / On-Off/ manual input control modes •    Auto-tuning PID parameters •    Various thermocouple (B, E, J, K, L, N, R, S, T, U, TXK) and platinum RTD (PT100, JPT100) can be set by parameters •    Built-in 2 groups of alarm switches with 13 alarm modes each •    Celsius or Fahrenheit temperature display •    2 key lock functions: (1. lock all keys; 2. lock only function key, up/down keys are still workable) •    Panel size: 4848, 4896, 9648, 7272, 9696 •    Optional RS-485 communication interface (Modbus ASCII, RTU, baud rate: 2,400 ~ 38,400) •    Optional CT (wire breaking detection) function, an alarm output •    Sampling time of sensor: 0.5 second/time •    Certifications: IP5X protection, CE, UL
