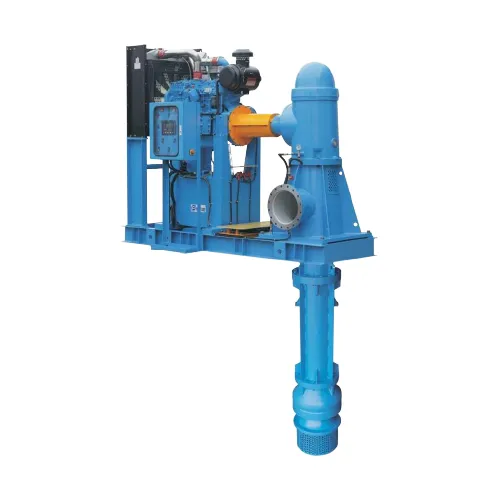

ปั๊มน้ำแบบเทอร์ไบน์ cnp รุ่น vtp

FEATURE - Vertical single stage or multistage pump with mixed or axial flow impeller design, broad hydraulic coverage provides best selection to meet specific operating conditions. Fabricated or cast iron, surface or underground discharge head, shaft and bearing combinations promote long life with options of open or enclose line shaft construction. It can be driven by VHS NEMA Standard motor, VSS motor or diesel engine through right angle gear box. - Performance range - Capacity : Q up to 40000m3/h - Head : H up to 200m - Temperature : T up to 40°c - Speed : n 2900/1450/980rpm 3500/1750/1180rpm - Standard material - Bowl : Cast iron, Stainless steel - Shaft : Stainless steel - Impeller : Cast iron, Bronze or Stainless steel - Discharge head: Cast iron or carbon steel Application - Water supply - Irrigation for deep well - Mine dewatering - Sprinkling and irrigation - Industrial wet-pit sumps - River/Sea water circulation - Fire-fighting
