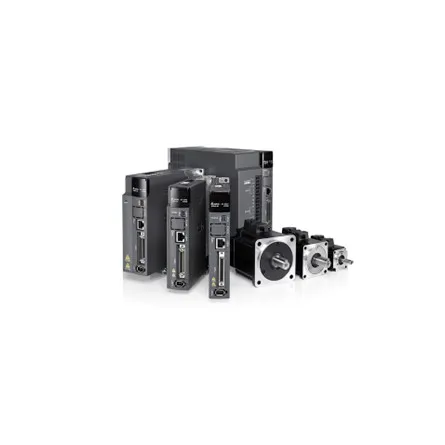

ASDA-A3 Series

Features & Benefits 3.1 kHz Bandwidth Higher responsiveness and shorter settling time increases productivity 24-bit Absolute Type Encoder 16,777,216 pulses/turns ensure precise positioning Steady performance at low-speed enhances machining quality Keeps motor's position during power shortage Advanced Motion Control E-CAM & 99 sophisticated motion E-CAM & 99 sophisticated motion commands and segments allowed Graphical user interface offers simple setup and programming Arithmetic operation / comparison commands available General motion functions such as homing, position and speed commands Superimposition, blending, and jump change motion commands provided Comprehensive Auto-Tuning Functions Built-in auto-tuning function lowers the barriers for users and optimizes machine performance with less tuning effort Provides step-by-step guidance wizard for easily tuning and setting up servos via panel keypad or software Excellent Vibration Suppression Advanced Notch Filter Provides 5 sets of notch filters with up to 5 kHz tunable bandwidth The filters can search resonance in a shorter time and set the attenuation level automatically, avoiding damage to machines Low Frequency Vibration Suppression Function Suppresses vibration for machines with high flexibility, enhancing overall performance Adopts a creative algorithm to eliminate the shaking of machines without slowing down its response and speed System Diagnosis Function Measures the rigidity and damping coefficient of a machine and checks the consistency of the machine's batch installation Acquires the wear condition of a machine by comparing data from different time spans Multi-axis DC-bus Sharing Design Collects regenerative energy and stabilizes DC-bus voltage for energy savings Multiple servo drives with DC-bus sharing saves cost of resistors and installation space Slim and Compact Size Servo Drives and Motors Drives and motors are 20% smaller and shorter than the ASDA-A2 Series, saving space Intuitive Software Interface Tree-View index list and collapsible menu helps to access functions easily Graphical interface provides set up functions and parameters, reducing setting time and failure Applications Machine tool, precise carving machine, gantry processing, TFT LCD cutting machine, IC packaging machine, assembly / inspection machine for electronics, industrial robot, packaging machine, labeling machine, semiconductor machine, textile machine Frame A Frame B Model Spec Model Spec ASD-A3-0121-L 220V 1Phase or 3Phase 100W ASD-A3-0421-F 220V 1Phase or 3Phase 400W DMCNET ASD-A3-0121-F 220V 1Phase or 3Phase 100W DMCNET ASD-A3-0421-M 220V 1Phase or 3Phase 400W CANOpen ASD-A3-0121-M 220V 1Phase or 3Phase 100W CANOpen ASD-A3-0421-E 220V 1Phase or 3Phase 400W EtherCAT ASD-A3-0121-E 220V 1Phase or 3Phase 100W EtherCAT ASD-A3-0443-L 400V 3Phase 400W ASD-A3-0221-L 220V 1Phase or 3Phase 200W ASD-A3-0443-F 400V 3Phase 400W DMCNET ASD-A3-0221-F 220V 1Phase or 3Phase 200W DMCNET ASD-A3-0443-M 400V 3Phase 400W CANOpen ASD-A3-0221-M 220V 1Phase or 3Phase 200W CANOpen ASD-A3-0443-E 400V 3Phase 400W EtherCAT ASD-A3-0221-E 220V 1Phase or 3Phase 200W EtherCAT Frame C Frame D Model Spec Model Spec ASD-A3-0721-F 220V 1Phase or 3Phase 750W DMCNET ASD-A3-2023-F 220V 3Phase 2.0kW DMCNET ASD-A3-0721-M 220V 1Phase or 3Phase 750W CANOpen ASD-A3-2023-M 220V 3Phase 2.0kW CANOpen ASD-A3-0721-E 220V 1Phase or 3Phase 750W EtherCAT ASD-A3-2023-E 220V 3Phase 2.0kW EtherCAT ASD-A3-1021-L 220V 1Phase or 3Phase 1.0kW ASD-A3-3023-L 220V 3Phase 3.0kW ASD-A3-1021-F 220V 1Phase or 3Phase 1.0kW DMCNET ASD-A3-3023-F 220V 3Phase 3.0kW DMCNET ASD-A3-1021-M 220V 1Phase or 3Phase 1.0kW CANOpen ASD-A3-3023-M 220V 3Phase 3.0kW CANOpen ASD-A3-1021-E 220V 1Phase or 3Phase 1.0kW EtherCAT ASD-A3-3023-E 220V 3Phase 3.0kW EtherCAT ASD-A3-1521-L 220V 1Phase or 3Phase 2.0kW ASD-A3-2043-L 400V 3Phase 2.0kW EtherCAT ASD-A3-1521-F 220V 1Phase or 3Phase 2.0kW DMCNET ASD-A3-2043-F 400V 3Phase 2.0kW DMCNET ASD-A3-1521-M 220V 1Phase or 3Phase 2.0kW CANOpen ASD-A3-2043-M 400V 3Phase 2.0kW CANOpen ASD-A3-1521-E 220V 1Phase or 3Phase 2.0kW EtherCAT ASD-A3-2043-E 400V 3Phase 2.0kW EtherCAT ASD-A3-0743-L 400V 3Phase 750W ASD-A3-3043-L 400V 3Phase 3.0kW ASD-A3-0743-F 400V 3Phase 750W DMCNET ASD-A3-3043-F 400V 3Phase 3.0kW DMCNET ASD-A3-0743-M 400V 3Phase 750W CANOpen ASD-A3-3043-M 400V 3Phase 3.0kW CANOpen ASD-A3-0743-E 400V 3Phase 750W EtherCAT ASD-A3-3043-E 400V 3Phase 3.0kW EtherCAT ASD-A3-1043-L 400V 3Phase 1.0kW ASD-A3-1043-F 400V 3Phase 1.0kW DMCNET ASD-A3-1043-M 400V 3Phase 1.0kW CANOpen ASD-A3-1043-E 400V 3Phase 1.0kW EtherCAT ASD-A3-1543-L 400V 3Phase 2.0kW ASD-A3-1543-F 400V 3Phase 2.0kW DMCNET ASD-A3-1543-M 400V 3Phase 2.0kW CANOpen ASD-A3-1543-E 400V 3Phase 2.0kW EtherCAT Frame E Model Spec ASD-A3-4523-F 220V 3Phase 4.5kW DMCNET ASD-A3-4523-M 220V 3Phase 4.5kW CANOpen ASD-A3-4523-E 220V 3Phase 4.5kW EtherCAT ASD-A3-5523-L 220V 3Phase 5.5kW ASD-A3-5523-F 220V 3Phase 5.5kW DMCNET ASD-A3-5523-M 220V 3Phase 5.5kW CANOpen ASD-A3-5523-E 220V 3Phase 5.5kW EtherCAT ASD-A3-7523-L 220V 3Phase 7.5kW ASD-A3-7523-F 220V 3Phase 7.5kW DMCNET ASD-A3-7523-M 220V 3Phase 7.5kW CANOpen ASD-A3-7523-E 220V 3Phase 7.5kW EtherCAT ASD-A3-1B23-L 220V 3Phase 11kW ASD-A3-1B23-F 220V 3Phase 11kW DMCNET ASD-A3-1B23-M 220V 3Phase 11kW CANOpen ASD-A3-1B23-E 220V 3Phase 11kW EtherCAT ASD-A3-1F23-L 220V 3Phase 15kW ASD-A3-1F23-F 220V 3Phase 15kW DMCNET ASD-A3-1F23-M 220V 3Phase 15kW CANOpen ASD-A3-1F23-E 220V 3Phase 15kW EtherCAT ASD-A3-4543-L 400V 3Phase 4.5kW ASD-A3-4543-F 400V 3Phase 4.5kW DMCNET ASD-A3-4543-M 400V 3Phase 4.5kW CANOpen ASD-A3-4543-E 400V 3Phase 4.5kW EtherCAT ASD-A3-5543-L 400V 3Phase 5.5kW ASD-A3-5543-F 400V 3Phase 5.5kW DMCNET ASD-A3-5543-M 400V 3Phase 5.5kW CANOpen ASD-A3-5543-E 400V 3Phase 5.5kW EtherCAT ASD-A3-7543-L 400V 3Phase 7.5kW ASD-A3-7543-F 400V 3Phase 7.5kW DMCNET ASD-A3-7543-M 400V 3Phase 7.5kW CANOpen ASD-A3-7543-E 400V 3Phase 7.5kW EtherCAT ASD-A3-1B43-L 400V 3Phase 11kW ASD-A3-1B43-F 400V 3Phase 11kW DMCNET ASD-A3-1B43-M 400V 3Phase 11kW CANOpen ASD-A3-1B43-E 400V 3Phase 11kW EtherCAT ASD-A3-1F43-L 400V 3Phase 15kW ASD-A3-1F43-F 400V 3Phase 15kW DMCNET ASD-A3-1F43-M 400V 3Phase 15kW CANOpen ASD-A3-1F43-E 400V 3Phase 15kW EtherCAT
